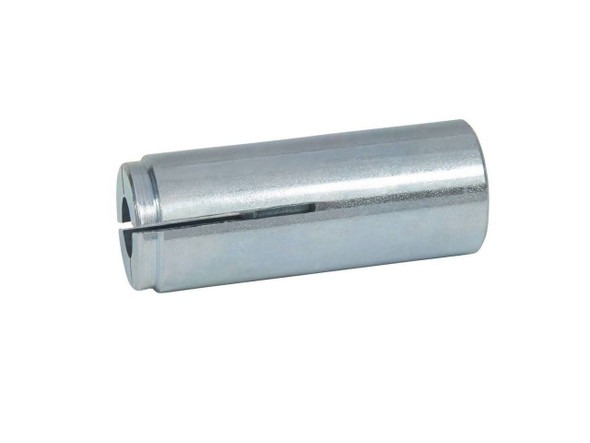

Drop in Anchor / Bullet Type Anchor
Plating - Zinc
Material grade - 4.6
Diameter - 6, 8, 10, 12, 16 and 20 mm
Material - MIld Steel
Usage/Application- Concrete, Masonry, and Solid Brick
Unit - Pieces
Minimum Order Quantity: 1 peice Packaging Type: Boxes
We are a trusted supplier of FMAN Drop in Anchor / Bullet Type Anchor, offering durable and high-strength anchors specifically designed for secure, reliable fastening in demanding construction environments. Engineered for heavy-duty applications, these anchors provide excellent load-bearing capacity, corrosion resistance, and lasting performance.
Our Drop in Anchors are ideal for solid substrates such as concrete, brick, and masonry. With a tapered, self-expanding design, they offer quick installation and a strong, dependable hold, expanding firmly within the drilled hole.
Applications
- Suitable for heavy-load applications in concrete, masonry, and solid brick.
- Pre-positioning or through-fix installation.
- Expands upon driving the anchor, providing a tight, stable hold.
Process
- Drill a hole corresponding to the diameter of the anchor.
- Insert the anchor into the hole.
- Drive the bolt or screw to expand the anchor within the substrate.
- Ensure the anchor is secure for optimal fastening strength.
Technical Chart
Maximum recommended loads for Wedge Anchors / Single Ring / Through Bolt Through Bolt with lage axial spacing and edge distance.
| Property | M6x30 | M8x40 | M10x40 | M12x50 | M16x60 | M20x80 |
| Tensile | 1.4 | 2.2 | 2.9 | 5.4 | 9.5 | 12.4 |
| Shear | 1.2 | 3.0 | 3.8 | 7.5 | 13.0 | 16.0 |
- Plumbing
- Heating
- Air-conditioning
- Ventilation installation
- Pipe suspension
- Air ducts
- Suspended ceilings
- Cable Trays
- Haid Rails
- Staircase
B 5 x 25
B 6 x 30
B 8 x 30
B 8 x 40
B 10 x 30
B 10 x 40
B 12 x 50
B 12 x 60
B 12 x 75
B 16 x 60
B 16 x 75
