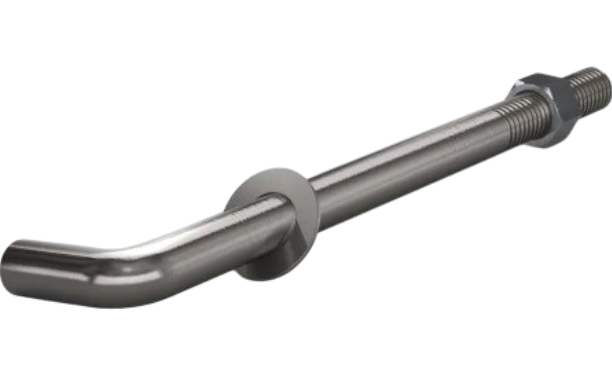

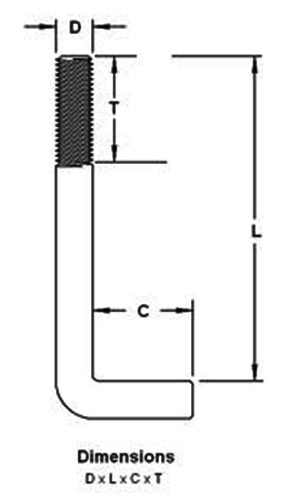

L-Type Foundation Bolt

Brand- KIoO

Material grade - MS 4.6, 5.6, 6.8, 8.8 and 10.9 SS

Thread Length- 3 inch

Material - Mild Steel

Usage/Application- Industrial

Heat Treatment - Yes

Minimum Order Quantity: 50 Kg                   Packaging Type: Box

L-type foundation bolts, also known as L-bolts or L-anchor bolts, are specialized fasteners used in construction to secure structural elements to concrete foundations. They are particularly useful when creating a connection between the foundation and superstructures such as columns, beams, walls, and other components. The “L” shape of these bolts provides stability and versatility in anchoring applications.

Applications

  1. Anchors structural elements to concrete foundations.
  2. Used in bridges and large-scale construction.
  3. Mounts heavy machinery in industrial plants.
  4. Secures utility equipment to foundations.

Process

  1. Foundation Preparation: Drill or position the L-bolts in the concrete formwork.
  2. Positioning: Ensure the long leg of the L-bolt is securely embedded while the short leg remains exposed above the foundation.
  3. Align and Secure: Align the L-bolt and secure with nuts and washers once the concrete cures.
  4. Final Tightening: Tighten the nuts to ensure stability.
