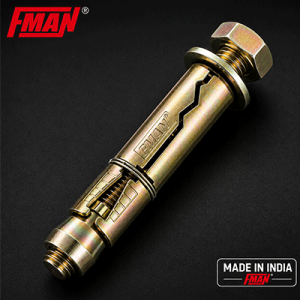

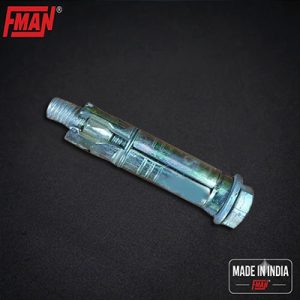

Heavy Duty Shield Anchor

Heavy Duty Shield Anchor Manufacturer

Fasteners India is a trusted Heavy Duty Shield Anchor manufacturer supplying robust anchoring solutions across West Bengal, Odisha, Assam, Chhattisgarh, Jharkhand, Bihar, Maharashtra, Telangana, Delhi, Meghalaya, Tamil Nadu, Uttar Pradesh & Karnataka. Our Shield Anchors are engineered for high load capacity, strong expansion grip, and long-term reliability in structural applications.

Our Heavy Duty Shield Anchors are engineered to provide powerful and reliable fastening solutions for high-load and structural applications. These anchors feature a robust, expanding shield design that tightly grips the base material when the bolt is tightened, delivering excellent holding power and load-bearing capacity. Ideal for fixing heavy-duty items to concrete, brick, and stone surfaces, the Heavy Duty Shield Anchor is a versatile and secure choice for industrial and construction projects.

Heavy Duty Shield Anchors are made with a strong expansion shield that is activated when the bolt is tightened, causing the anchor to expand and grip the sides of the drilled hole securely. This design ensures stable fastening, even in high-load scenarios, by evenly distributing the load to prevent cracks or damage to the base material.

Plating : Zinc
Material grade : 1022
Diameter : 6, 8, 10, 12,16 ,20
Material : Mild Steel
Usage/Application : Machinery installations
Heat Treatment : Yes

Applications

Fixing barriers, roller shutter and fire doors and switchgear
Securing structural fixtures.
For use in concrete and most types of masonry.
Ideal for overhead and ceiling work or heavy items.
Securing cable trays, ducting and trunking.
Installing partitions and structural fixtures.

Process

Drill a hole into the base material that matches the diameter of the anchor.
Insert the Heavy Duty Shield Anchor into the hole.
Place the fixture over the anchor and insert the bolt through the fixture into the anchor.
Tighten the bolt to expand the shield and secure the anchor in place.
Verify the anchor is firmly in place to ensure optimal load support.

Technical Chart

Maximum recommended loads for Double Ring Through Bolt with large axial spacing and edge distance

DIA	KN
6	3.3
8	4.8
10	6.2
12	9.7
16	15.0

BOLT SIZES	DRILL/DIA
6 X 50	12
8 X 60	14
10 X 75	16
12 X 90	20
16 X 120	25

What Is a Heavy Duty Shield Anchor?

A Heavy Duty Shield Anchor is a mechanical fastener designed for secure fixing in concrete and solid masonry. It consists of an expansion shield and bolt that work together to create strong outward pressure against the base material, ensuring firm and vibration-resistant anchorage.

Built for Structural Strength and Safety

Our Heavy Duty Shield Anchors are manufactured using premium-grade materials and precision machining, delivering consistent performance, accurate fitment, and dependable load-bearing capability in critical installations.

Key Advantages of Our Heavy Duty Shield Anchors

High load capacity for structural applications
Reliable expansion mechanism for secure grip
Corrosion-resistant finishes available
Suitable for indoor and outdoor installations
Consistent quality and long service life

Common Applications of Heavy Duty Shield Anchors

These anchors are widely used for:

Structural steel and beam fixing
Heavy machinery and equipment installation
Electrical and mechanical supports
Fire safety systems and HVAC mounting
Infrastructure and industrial construction

Technical Characteristics

Feature	Specification
Anchor Type	Heavy Duty Shield Anchor
Material Options	MS / HT / Stainless Steel
Finish	Zinc Plated / Galvanized / Natural
Installation Surface	Concrete / Solid Masonry
Load Performance	High load-bearing (size dependent)
Expansion Mechanism	Multi-segment shield expansion

(Specifications may vary based on size and application.)

Complete Support for Heavy Duty Anchoring Needs

Our experienced team provides technical assistance, product selection guidance, and reliable after-sales support to ensure successful and safe installations.
