Rawal Bolt Anchor with Eye Bolt

Fasteners India is a trusted Rawal Bolt Anchor with Eye Bolt manufacturer supplying high-strength anchoring solutions across West Bengal, Odisha, Assam, Chhattisgarh, Jharkhand, Bihar, Maharashtra, Telangana, Delhi, Meghalaya, Tamil Nadu, Uttar Pradesh & Karnataka. Our products are engineered for secure lifting points, suspended installations, and heavy-duty fixing in concrete and masonry.

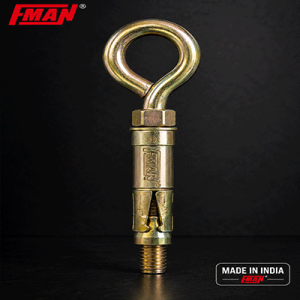

The Heavy Duty Shield Anchor (Rawl Bolt) with Eye Bolt is a robust expansion anchor designed for secure anchoring into concrete, brick, or block. Featuring a forged eye bolt and a multi-piece expansion shield, it provides strong, reliable holding power for tension-based loads and safety-critical attachments.

• Plating : Zinc
• Material grade : 1022
• Diameter : 6, 8, 10, 12,16 ,20
• Material : Mild Steel
• Usage/Application : Machinery installations
• Heat Treatment : Yes

Applications

• Suspending chains, cables, or ropes in masonry
• Installing safety barriers, signage, or lighting
• Fixing anchoring points for load-bearing or tensioned systems
• Hanging pipe supports, wire hangers, or suspension systems in construction or industrial settings

Process

• Drill Hole: Drill a hole in the base material matching the anchor’s diameter and depth.
• Clean Hole: Clear debris with compressed air or a brush to ensure full expansion.
• Insert Shield: Insert the expansion shield into the hole until flush with the surface.
• Tighten Eye Bolt: Thread and tighten the eye bolt into the shield. As you turn, the internal cone pulls into the shield, expanding it and anchoring securely in place.

What Is a Rawal Bolt Anchor with Eye Bolt?

Fasteners India is a form of expansion Rawal Bolt Anchor with Eye Bolt that is commonly used to permanently secure steel to solid concrete. It is built using a three-segment expansion clip and comes with a screw and washer. Expansion clips offer uniform holding capacity, which rises as strain is applied. A Rawal Bolt Anchor with Eye Bolt is a mechanical fastening system that combines an expansion anchor with a forged eye bolt. It is commonly used where secure hanging, lifting, or suspended loads are required, providing both strong anchorage and a reliable attachment point.

Built for Safety, Load Performance, and Durability

Manufactured using premium-grade steel and precision machining, our Rawal Bolt Anchors With Eye Bolts offer excellent load capacity, smooth installation, and long-term performance even in demanding environments.

Why Choose Fasteners India for Rawal Bolt Anchor with Eye Bolt?

• High-quality raw materials and strict quality checks
• Accurate threading and reliable expansion mechanism
• Custom sizes, finishes, and eye dimensions available
• Competitive pricing and bulk manufacturing capability
• Reliable supply across multiple regions

Common Applications of Rawal Bolt Anchors with Eye Bolts

These anchors are widely used in:

• Lifting and hoisting systems
• Cable tray and lighting suspension
• HVAC and fire-fighting installations
• Industrial machinery mounting
• Infrastructure and construction projects

Manufacturing Process of Rawal Bolt Anchor with Eye Bolt

Our manufacturing process follows strict quality standards to ensure consistent performance:

• Raw Material Selection– High-grade MS / HT / SS steel is sourced.
• Cutting & Forging– Eye bolts and anchor bodies are shaped using precision forging and machining.
• Thread Rolling– Threads are rolled for higher strength and accuracy.
• Sleeve Fabrication– Expansion sleeves are manufactured to precise tolerances.
• Heat Treatment (if required)– Improves strength and load performance.
• Surface Finishing– Zinc plating, galvanizing, or passivation for corrosion protection.
• Quality Inspection– Dimensional checks, load testing, and finish inspection.
• Packaging & Dispatch– Secure packing for safe transportation and delivery.

Technical Chart – Rawal Bolt Anchor with Eye Bolt

(Exact load ratings and dimensions available on request.)

Complete Technical and Supply Support

Our experienced team provides product selection assistance, installation guidance, and reliable after-sales support to ensure safe and successful anchoring solutions.

Rawal Bolt Anchor with Eye Bolt vs. Standard Anchors

Compared to standard Rawal Bolts and Wedge Anchors, Rawal Bolt Anchors with Eye Bolts offer added lifting capability, safer suspended installations, and versatile application in industrial and construction environments.
